Doorstations BVD-403 Family

BVD-403CPL

BVD-403CPL

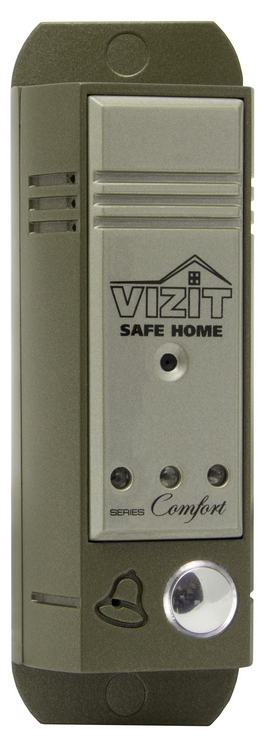

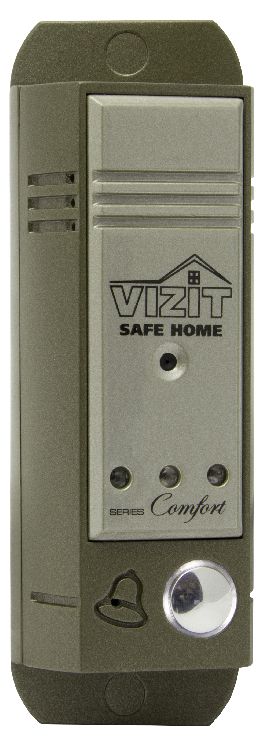

Общий<br />
вид

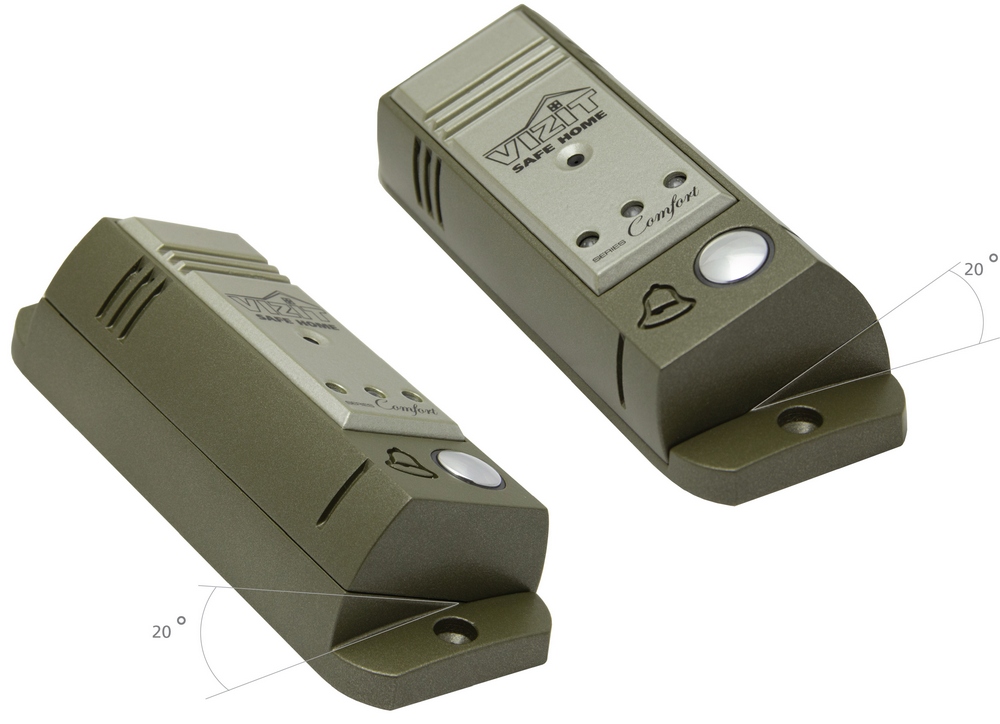

Поворотная<br />
подставка

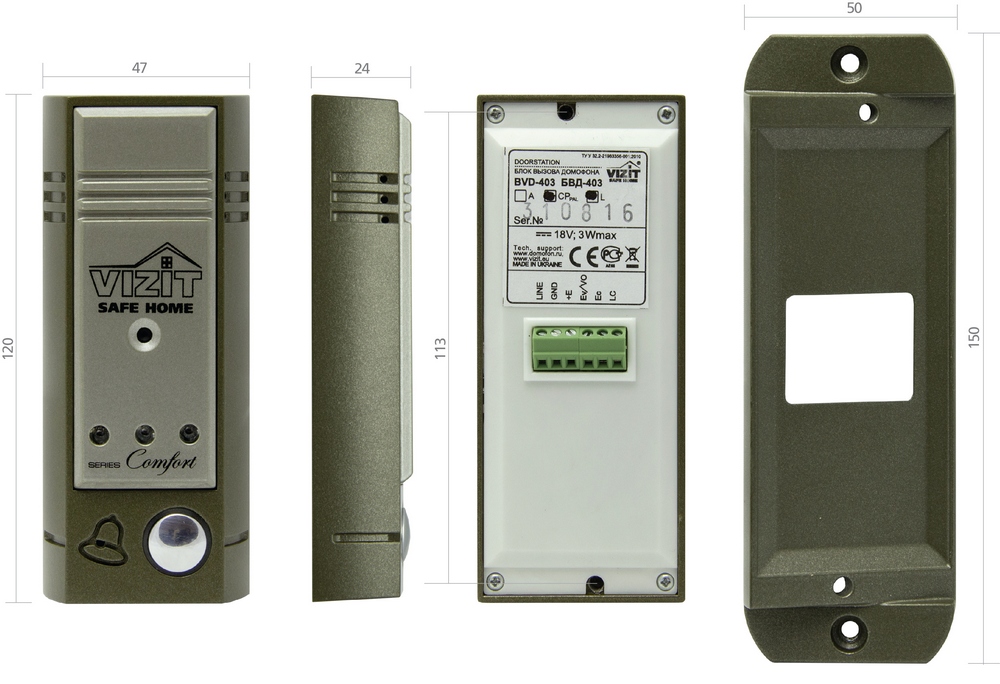

Конструктив

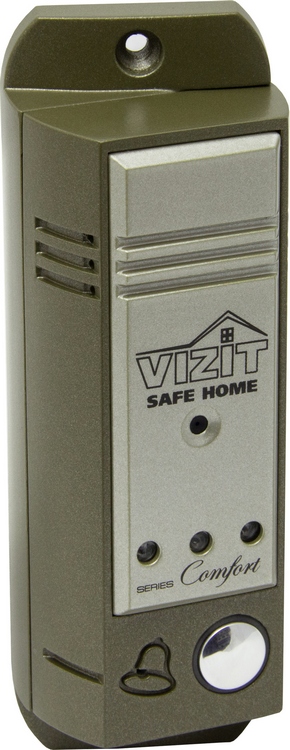

ОБЩИЙ<br />
ВИД 2

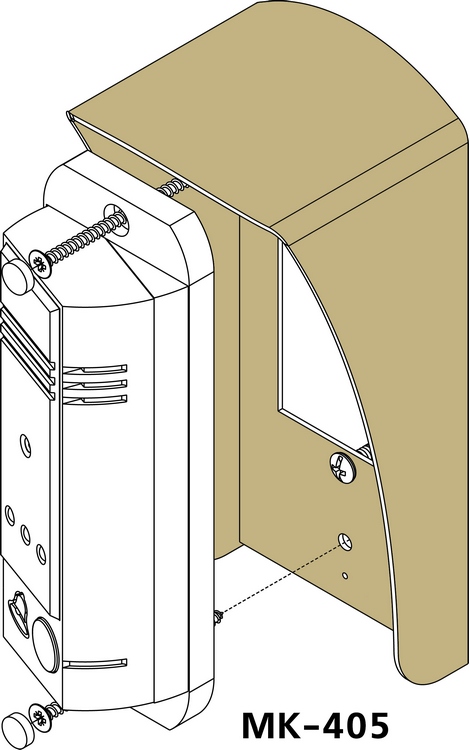

РЕКОМЕНДАЦИЯ<br />
ПО МОНТАЖУ

Description

Doorstation BVD-403CPL

  • duplex intercom;
  • door zone video monitoring;
  • built-in colour camera (CCIR, PAL, 700 TVL, 0 Lux, PINHOLE lens 90°);
  • illumination for camera;
  • beeps to indicate call in progress;
  • lock release by pressing door open button on apartment handset / monitor;
  • beeps to indicate lock release;
  • operating voltage, VDC:  16...25;
  • dimensions, mm (WxHxD):  50х150х38;
  • surface mounting;
  • skew mounting base to provide 20° right/left turn for doorstation;
  • ambient temperature range:   -30°С to+45°С.

Options

  • C - colour camera;
  • P - pinhole lens;
  • L - illumination for camera.

Docs:

NAME FILE DATE SIZE FORMAT
Operating Instruction BVD-403A(CPL)_OI_en_20160520_A4.pdf 20.07.2021 624.95 KB pdf
PROVOZNÍ INSTRUKCE BVD-403cz(1).pdf 20.07.2021 1.86 MB pdf

Схема подключения:

BVD-403CPL
